Foxtrot Charlie is officially in the expert hands of the team at Heliserve in Leeds, where it has begun it’s full overhaul. The entire process is expected to take around six months, and yesterday we got our first look behind the scenes.
At first glance, it’s still recognizable. The engine cowlings, tail rotor assembly, and fin have already been stripped away. With the panels gone, we get a rare, unobstructed view of the engineering marvel of the R44.
We managed to get some great shots of components you would normally never see!

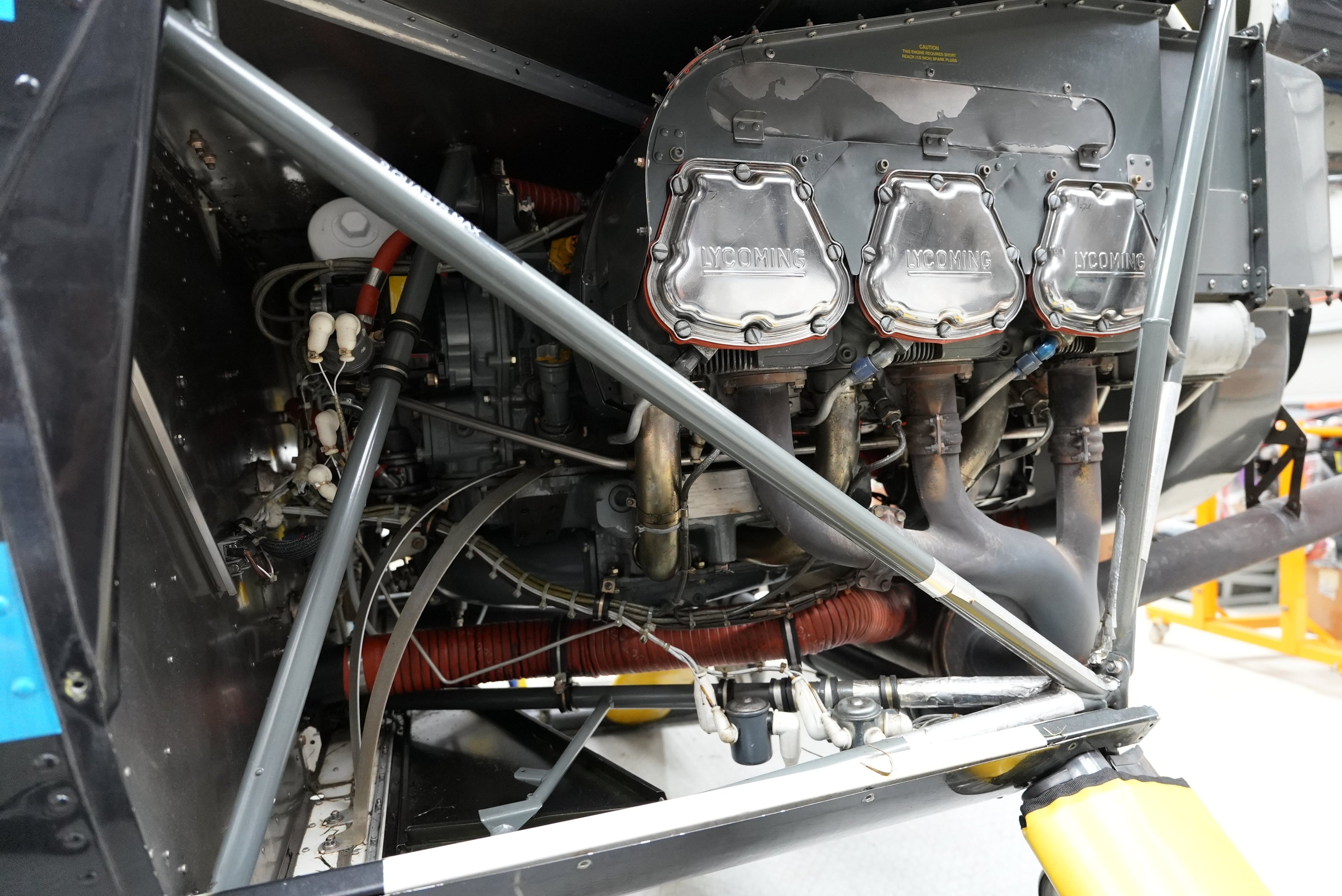

Power and Avionics: Nestled at the lower rear of the fuselage sits the heart of the machine: the Lycoming IO-540 engine. It’s incredible to see it exposed, with its complex web of cooling shrouds, and fuel lines. This is the powerplant that drives the dual-blade rotor system, generating the lift and cyclic control that somehow makes this incredible machine defy gravity.
The Drive Belts & Actuator: Located just in front of the tail cone, we got a clear view of the main drive belts. These are what transmit power from the engine up to the main rotor gearbox.
The Tail Cone Interior: Peeking inside the tail cone, you can clearly see the long tail rotor drive shaft.
The Flex Couplings: We even got a perfectly clear view of the main rotor drive system bolts and flex couplings (the ones you normally have to blindly reach in and check for security during pre-flight, but can rarely actually see).
Inside the cabin, the transformation has already begun. The team have made a start on the instrument panel, the CD player is officially history. Foxtrot Charlie is getting a modern glow-up, including an upgraded avionics stack and a sleek new black leather interior.
This is just the beginning of a very long journey, and there is still a massive amount of disassembly still to go.
