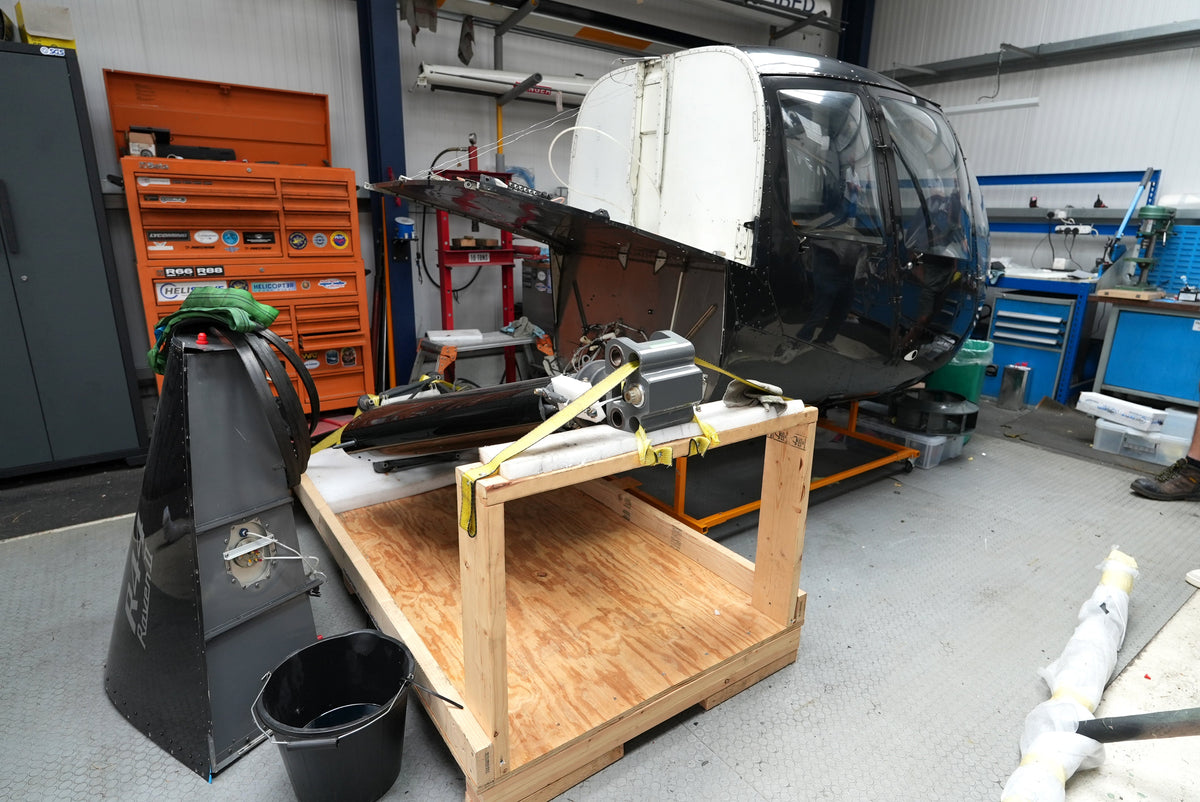

Foxtrot Charlie is now at that fascinating stage of the overhaul where it barely resembles a helicopter anymore. A large amount of the airframe has been dismantled, and it is no longer sitting on its own skids. Instead, the aircraft is supported on a wheeled maintenance frame, giving the engineers safe access underneath and allowing major components to be removed, inspected, repaired, or replaced when needed in accordance with Robinson’s Helicopter Company requirements.
Inside the cabin, the strip-down has continued. Cushions, seating, and almost all of the controls have all been removed. To a casual observer it can look alarming, but for engineers this is the best way to properly inspect the structure, control linkages, wiring runs, floor areas, and attachment points. Helicopters live in a high-vibration environment, so over time even small signs of wear, fretting, corrosion, or loose fittings matter.
One of the upgrades being carried out on Foxtrot Charlie is the move from traditional filament lamps to LED lighting. Older aircraft bulbs work by heating a tiny filament until it glows, which makes them vulnerable to vibration and repeated thermal cycling. LEDs are solid-state, meaning there is no delicate glowing wire inside to shake itself to pieces. They also draw less electrical current, reducing load on the battery and alternator and improving reliability, especially on aircraft that do plenty of starts and landings.
On the R44, the landing-light hardware is mounted low on the aircraft, around the frame area between the skids and the underside of the fuselage. These are the kind of places engineers pay close attention to during an overhaul because brackets, clamps, and mounting points can trap moisture or wear through paint over time. Once protective paint is broken, bare metal becomes more vulnerable to corrosion, especially on aircraft exposed to damp hangars, grass operations, winter conditions, or coastal air.
Foxtrot Charlie’s navigation lights, tail light, and landing lights are being upgraded to LEDs. The only lamp staying non-LED is the tail strobe, which remains as fitted for this stage of the aircraft’s configuration.
This photo of the skid shoes is a part that’s rarely seen. Skid shoes are fitted to the bottom of the skids to take the punishment from ground contact, sliding, and everyday wear. They are sacrificial parts: it is far better for a replaceable shoe to absorb scraping and friction than for the skid tube itself to be worn away. You normally only see this area from a safe distance, because if you are looking at skid shoes this closely during landing, you are definitely standing in the wrong place!
The lower fuselage frames on an R44 Raven II sit beneath the cabin and alongside the engine bay area. They are not glamorous parts, but they are structurally important because they form part of the framework that supports and ties the aircraft together. At £4,000 new replacement frames can be expensive, but Foxtrot Charlie’s were in good condition overall, so instead of replacing them outright, they received minor CAA-approved welding repairs where required.
The frames were sent away for dye penetrant testing. This is a form of non-destructive testing, often shortened to NDT, which means the part can be inspected for defects without cutting it open or damaging it. The process is surprisingly clever: the part is cleaned, a very thin coloured or fluorescent dye is applied, and the dye is allowed time to seep into any tiny surface cracks, pinholes, or flaws. The surface is then cleaned again and a developer is applied, which draws trapped dye back out of any defect so it becomes visible.
This is important because welded repairs can look perfectly neat on the outside while still hiding very fine surface cracks. Dye penetrant testing gives engineers evidence that the repair area is sound before the frame goes back into the aircraft. For a helicopter, that attention to detail is essential: every bracket, frame, tube, control, and fastener has a job to do, and the overhaul process is about proving every part is safe.
So although Foxtrot Charlie may currently look quite bare, this is the exciting part! The aircraft is being opened up, fully inspected, improved where necessary, and rebuilt with the methodical care that helicopter maintenance demands.
